DSPCB-12 Deepstomp Main Board PCB Circuit Version 1.2

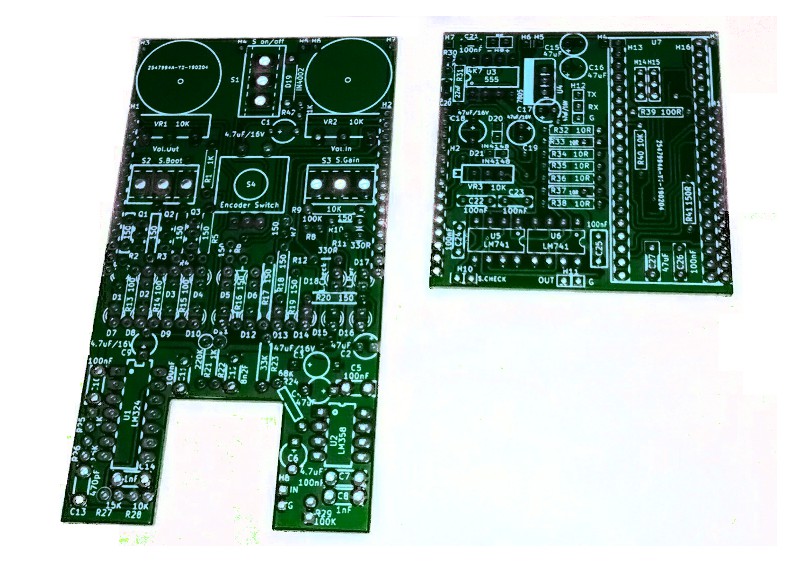

- DSPCB-12 is a printed circuit boards package for Deepstomp main board (circuit version: 1.2). It contains two pieces of PCBs (panel PCB and CPU mounting PCB).
- PCB Specification
- PCB material: FR4 1.5 mm
- Layer count: 2
- Plated through hole: yes
- Solder adhesive coating: HASL (with lead)
- Solder mask: yes
- Silk screen (label)
- Size : 53 mm x 97 mm (panel PCB) and 53 mm x 54 mm (CPU mount PCB )
