DSKIT-P12BME1 Deepstomp DIY Programmable Guitar Effect Pedal Kit with Bluestomp ME-1 Multi-Effect Core

Free shipping worldwide only for US$59


Buy DSKIT-P12BME1 for US$59 (Accept Paypal or credit cards)

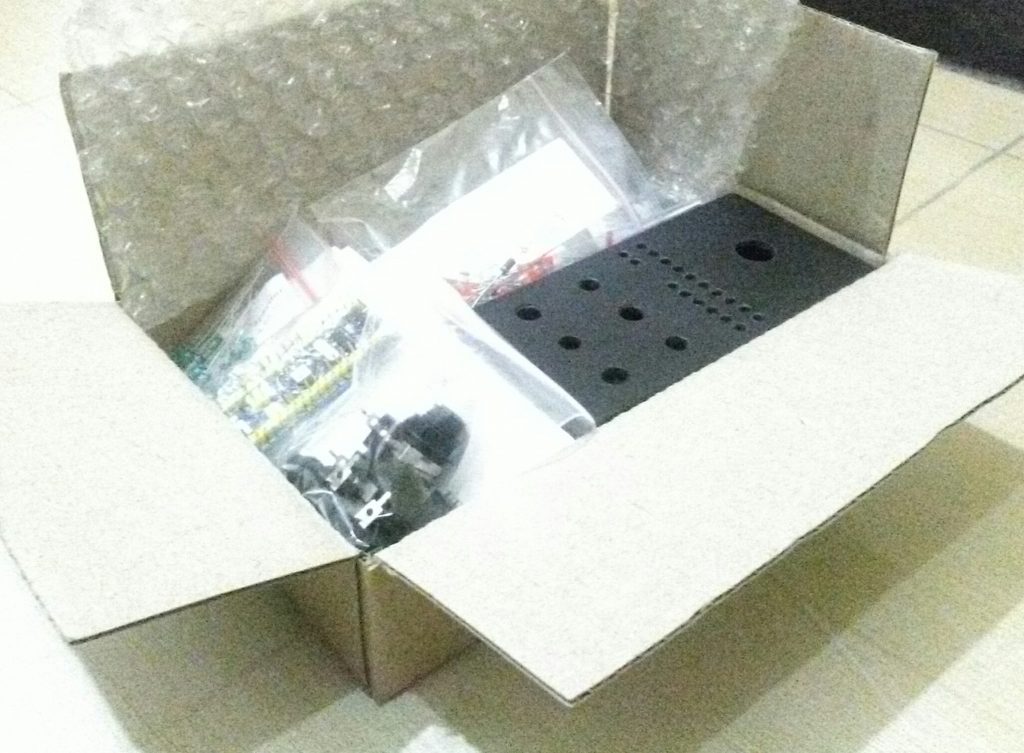

PRODUCT PACKAGE AND CONTENTS

  • PRODUCT DESCRIPTION
    • Deepstomp DIY Digital Guitar Pedal Kit with Bluestomp ME-1 Multi-Effect CPU module is a
      components kit containing complete unassembled parts to build a multi-effect stompbox/pedal featured with:
      • Guitar chromatic tuner
      • Integrated noise gate expander and compressor (with off-level and on-level controls for the noise gate, and with compression start level, compression amount/ratio, attack time, and decay time controls for the compressor)
      • Distortion (overdrive, fuzz, fold-back)
      • Tremolo (with square wave, triangle, and sine modulation waveform)
      • Integrated delay-reverb module (reverb mode: spring reverb, delay mode: 20-190 ms)

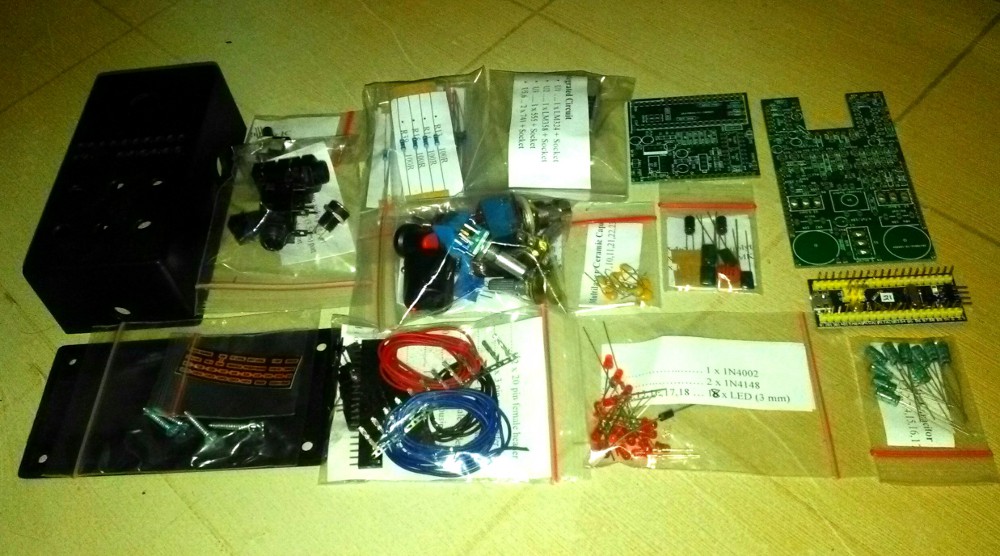

  • KIT CONTENTS
    • Pedal Enclosure Case
      • Molded plastic material (2 mm thick)
      • Size: 4 mm x 6 mm x 12 mm
      • Vinyl label sticker
    • Deepstomp Main Board PCB (DSPCB-12)
    • Bluestomp ME-1 Multi-Effect CPU Module (DSCPU-BME1)
    • Components Package
    • Printed Deepstomp Kit Assembly Guide
    • Printed Bluestomp ME-1 Effect Parameters Quick Reference and The EULA
  • COMPONENT PACKAGE CONTENTS
    • Resistors
      • R1,R2,..,R42 ……. 42 x Resistors
    • Swicth, potentiometer, and knobs
      • VR1,2 …… 2 x 10K Potentiometer + Knob
      • VR3 …….. 1 x 10K Multi-turn trimmer potentiometer
      • S1,2,3 ….. 3 x SPDT Toggle Switch
      • S4 ……… 1 x Rotary Encoder with Push Button + Knob
      • CHECK … 1 x 3PDT Stomp Switch
    • Multi-layer Ceramic Capacitor
      • C5,7,10,11,21,22,23,24,25,26 … 10 x (100nF Mylar or 1uF Multi Layer Ceramic)
    • Electrolytic Capacitor
      • C1,2,3,4,15,16,17,18,19,27 ……. 10 x 47uF/16V Electrolytic
    • Capacitor Mix
      • C6,9 ….. 2 x 4u7/16V Electrolytic
      • C20 …….1 x 22nF Mylar or MKM
      • C8,14 … 2 x 1nF Mylar
      • C12 …. 1 x 8n2 Mylar
      • C13 .…. 1 x 470pF Mylar
    • Transistor and Regulator IC
      • Q1,2,3 ……. 3 x (2N3904 or 2N2222A)
      • U4 …………… 1 x 7805
    • Integrated Circuits
      • U1 ….. 1 x LM324 + Socket
      • U2 ….. 1 x LM358 + Socket
      • U3 ….. 1 x 555 + Socket
      • U5,6 … 2 x 741 + Socket
    • Diodes
      • D19 …………………………….…………..…… 1 x 1N4002
      • D20,21 ………………………………..………… 2 x 1N4148
      • D1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18 … 18 x LED (3 mm)
    • Ports
      • IN,OUT ……………………………. 2 x Mono audio plug port
      • Serial Communication …………. 1 x stereo plug (3.5mm) port
      • POWER ….…………………….. 1 x DC power plug port
    • Connectors
      • H13, 16 …………………………….. 2 x 20 pin female header
      • H12 ……………………………………….. 1 x 3 pin male header
      • H8,11,10,9 ……………………………… 4 x 2 pin male header
      • H1,2,3,7 …………………………………. 4 x 1 pin male header
      • Cable connector H8,11,10,9 ……… 4 x 2 pin housing + socket
      • Cable connector H12 ……………….. 1 x 3 pin housing + socket
      • Boot connector ……………………….. 1 x 1 pin socket
      • Red cable 0.5 mm solid core …….. 1 m
      • Blue cable 0.5 mm solid core ……. 1 m
      • Black cable 0.5 mm solid core ….. 0.5 m
  • SUPPORTS

Free shipping worldwide only for US$59



Buy DSKIT-P12BME1 for US$59 (Accept Paypal or credit cards)

This DSKIT-P12BME1 kit contains complete parts to assemble your own multi-effect pedal, after d-i-y assembling, the assembled product will looks like in the following video (showing the factory presets of Bluestomp ME-1 core)

ASSEMBLED KIT DEMO: BLUESTOMP ME-1 FACTORY PRESETS
