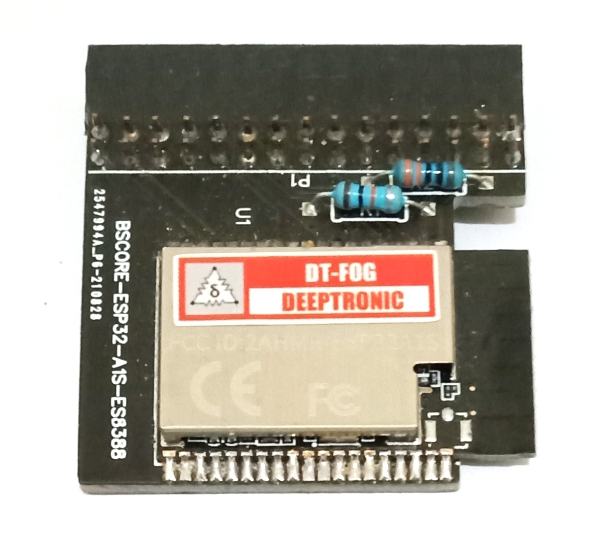

DT-FOG Octaver Module

$49.00

DT-FOG is a superfast polyphonic octaver module designed for guitar effect pedal application. Based on phase vocoder algorithm, DT-FOG employs separate high speed transient signal processor and high frequency resolution processor. By combining the outputs of the two processors, DT-FOG produces superfast transient response while maintaining high precision transpose for both octave and sub-octave
synthesis

2 in stock

SKU: DTFOG-MOD Categories: ,

Description

DT-FOG is a superfast polyphonic octaver module designed for guitar effect pedal application. Based on phase vocoder algorithm, DT-FOG employs separate high speed transient signal processor and high frequency resolution processor. By combining the outputs of the two processors, DT-FOG produces superfast transient response while maintaining high precision transpose for both octave and sub-octave
synthesis



FEATURES

  • >> Independent control for dry, octave, and sub-octave levels
  • >> Superfast transient processing (1/100 second latency)
  • >> High frequency resolution for non-transient signal
  • >> Glitch-free tracking
  • >> Designed for true bypass wiring



DOCUMENTS



FOG PEDAL DEMO VIDEO
