BGPM-1 PCB (Blackstomp Generic Production Model-1)

$14.00

BGMP-2 PCB is a model-1 variation of Blackstomp core generic production model. Featured with 3 potentiometers in the first row,  and 3 potentiometers in the second row. Each potentiometers of the second row can be optionally replaced  with  ON-ON SPDT  or ON-OFF-ON SPDT switch. One of any potentiometers of the second row can also be replaced with 1P8T rotary switch. Tested with BSCORE and BWE-PONG modules.

5 in stock

SKU: BGPM1-PCB Categories: , ,

Description

BGMP-2 PCB is a model-1 variation of Blackstomp core generic production model. Featured with 3 potentiometers in the first row,  and 3 potentiometers in the second row. Each potentiometers of the second row can be optionally replaced  with  ON-ON SPDT  or ON-OFF-ON SPDT switch. One of any potentiometers of the second row can also be replaced with 1P8T rotary switch. Tested with BSCORE and BWE-PONG modules.

SPECIFICATION

  • >> Material: FR4-Standard Tg 130-140C
  • >> PCB thickness: 1.6 mm
  • >> PCB size: 85.7 mm* 59.7 mm
  • >> Appearance quality: IPC Class 2 Standard
  • >> Surface finish: lead-free-HASL-RoHS
  • >> PCB color: black
  • >> Silkscreen: white

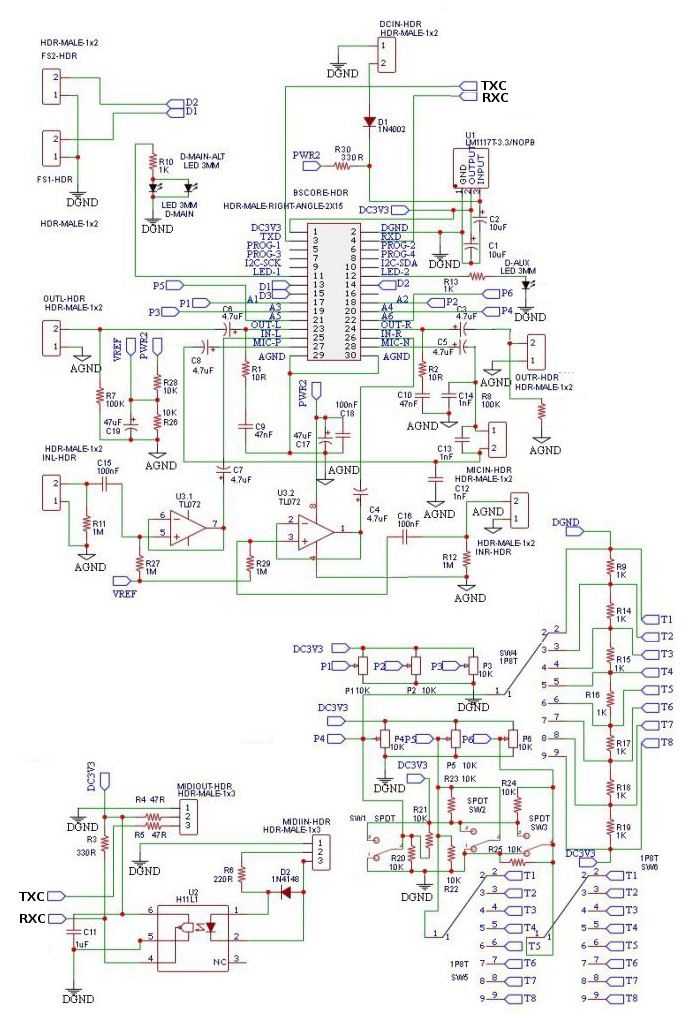

SCHEMATIC DIAGRAM

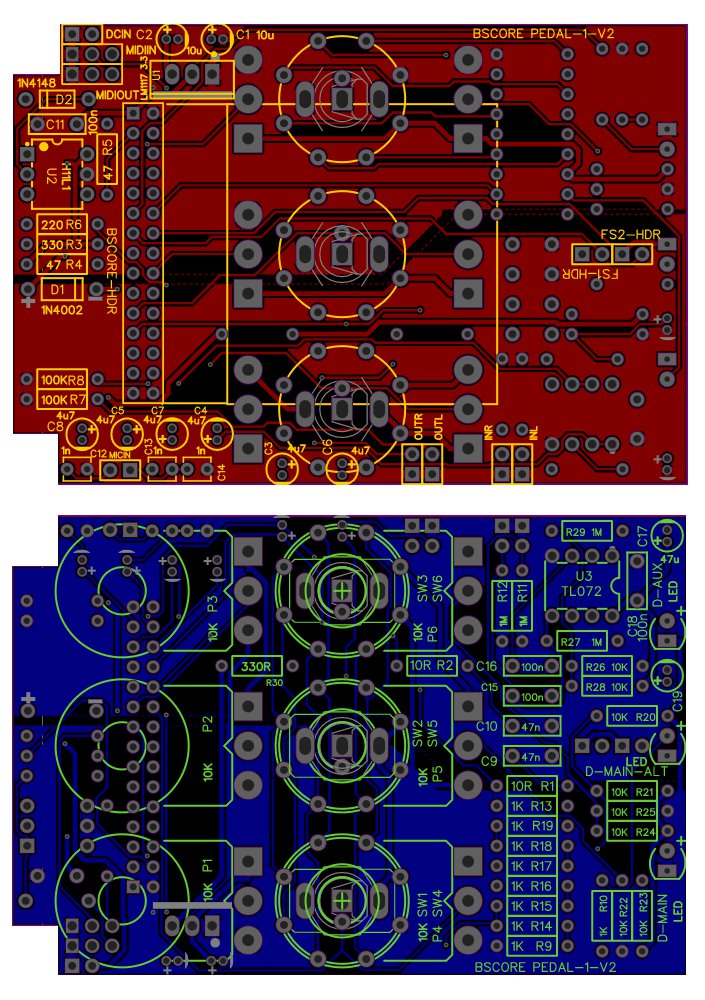

LAYOUT

Additional information

Weight 10 g
